Bachmann T3 Model

PRE ORDERS EXPLAINED

Overview

A pre-order is a term used for placing an order for an item that has not yet been released or that is currently on back order with the manufacturer.

Payment

When placing a pre-order on our website, we will ask you to pay a £50 deposit. The balance being payable prior to dispatch.

Deposits are non refundable or transferable.

DELIVERY

When a delivery date is given to us by the supplier we will contact you for the balance payable, once payment has cleared we will dispatch your model.

Pre-orders available now - Click on the link below

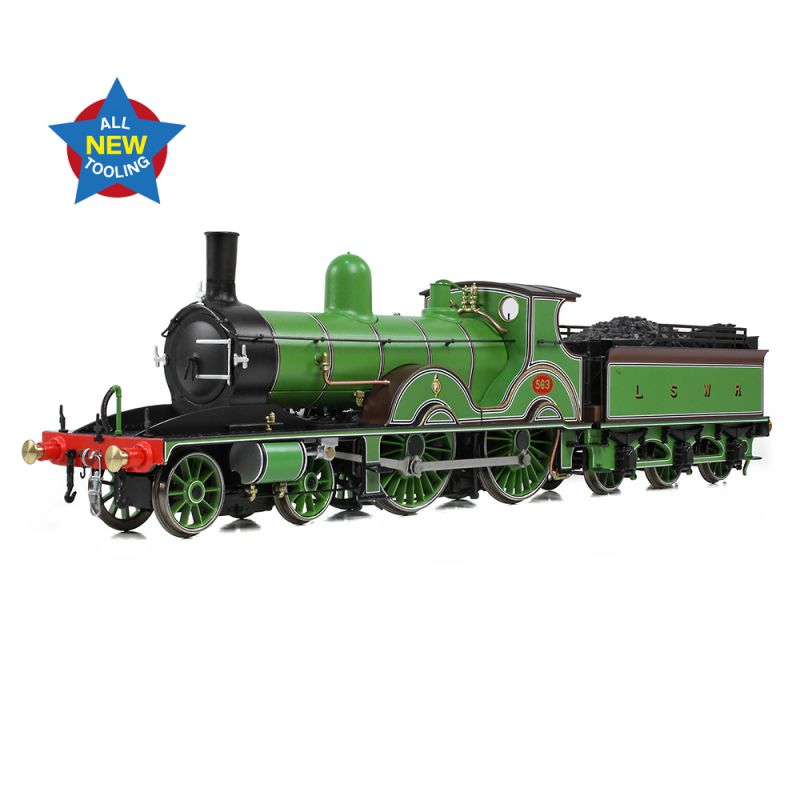

LSWR Adams T3 563 LSWR Drummond Green

£199.95

  • EFE Rail OO Scale
  • Era 2
  • Locomotive is Preserved
  • Pristine LSWR Drummond Green livery
  • Running No. 563
  • Etched Numberplates included
  • Equipped with a Next18 DCC Decoder Socket – Recommend Decoder item No. 36-567A
  • Length 228mm (over couplings)



DETAIL VARIATIONS SPECIFIC TO THIS MODEL

  • Adams Boiler
  • Adams Chimney
  • Adams Smokebox Door
  • Flush Smokebox Saddle
  • Equalising Beam Suspension
  • Fluted Coupling Rods
  • Splasher Beading
  • Rear Bogie Wheel Splashers*
  • Bufferbeam Side Chains
  • Piston Tail Rods*
  • Double Whistle
  • Lamp Iron Sockets
  • LSWR Discs and Diamond Head Signals*
  • Tender Coal Rails
  • Additional Tender Toolbox

*supplied separately for optional fitting



EFE RAIL LSWR T3 SPECIFICATION

MECHANISM:

  • Five pole motor with flywheel mounted in the locomotive, driving the rear set of driving wheels
  • Electrical pickup from all driving wheels and tender wheels
  • Separate metal bearings fitted to each driving wheel axle and each bogie wheel axle
  • Metal bearings fitted to each tender wheel axle
  • Diecast metal chassis fitted to both the locomotive and tender
  • Gearing arranged for prototypical running speeds and haulage capabilities
  • 5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
  • Valve gear of metal construction
  • Discreet snap-together locomotive to tender drawbar with integral close coupling mechanism and electrical connections
  • Sprung front bogie
  • Front bogie features a clip-in front section with optional blank filler or coupling adapter with integral coupling pocket to NEM362 standards
  • Tender features a close coupling mechanism which is fitted with a coupling pocket to NEM362 standards
  • Designed to operate on curves of second radius (438mm) or greater

DETAILING:

  • Diecat metal boiler, running plate, front splashers and locomotive footsteps
  • Injection-moulded cab, tender body and frames
  • Additional metal detail parts including etched step treads, handrails and handrail knobs
  • Sprung metal buffers
  • Separately fitted detail parts including lamp irons, injectors, whistle, vacuum pipes, brakes and brake rigging (on both the locomotive and tender)
  • Representation of the inside valve gear
  • Tender fitted with coal-effect load
  • Cab interior detailing including boiler backhead controls and gauges, brake standard and tender sandboxes
  • Hinged and posable metal fall plate between the locomotive and tender
  • Each model supplied with a full set of decorated, model-specific accessories including bogie splashers, guard irons and etched engine head signals – LSWR-period models are supplied with LSWR-style discs and LSWR diamonds, SR-period models are supplied with SR-style discs
  • Where appropriate, models will be supplied with a set of authentically decorated etched number plates

LIGHTING:

  • Firebox lighting with twin LEDs operating on DC and DCC
  • Textured filter in the firebox hole to simulate a burning coal fire

DCC:

  • Next18 DCC decoder interface located in the tender

SOUND:

  • Twin speakers installed in the tender of all models for optimum sound reproduction

LIVERY APPLICATION:

  • Authentic liveries applied to all models
  • Multiple paint applications employed on each model using LSWR/SR specification colours
  • Logos, numerals and text added as appropriate using multi-stage tampo printing utilizing authentic typefaces, logos and colours
PRE-ORDER NOW
